Actuators & Hydraulic Hand Pumps

Actuators

actuator 1 e1647309487682
actuator 4
actuator 7
actuator 1 1 e1647309671418
2
actuator 5
Hydraulic Actuator
actuator 6
Electrical Hydraulic Actuator
actuator 3 600x510
20220113095826 scaled e1647332886246

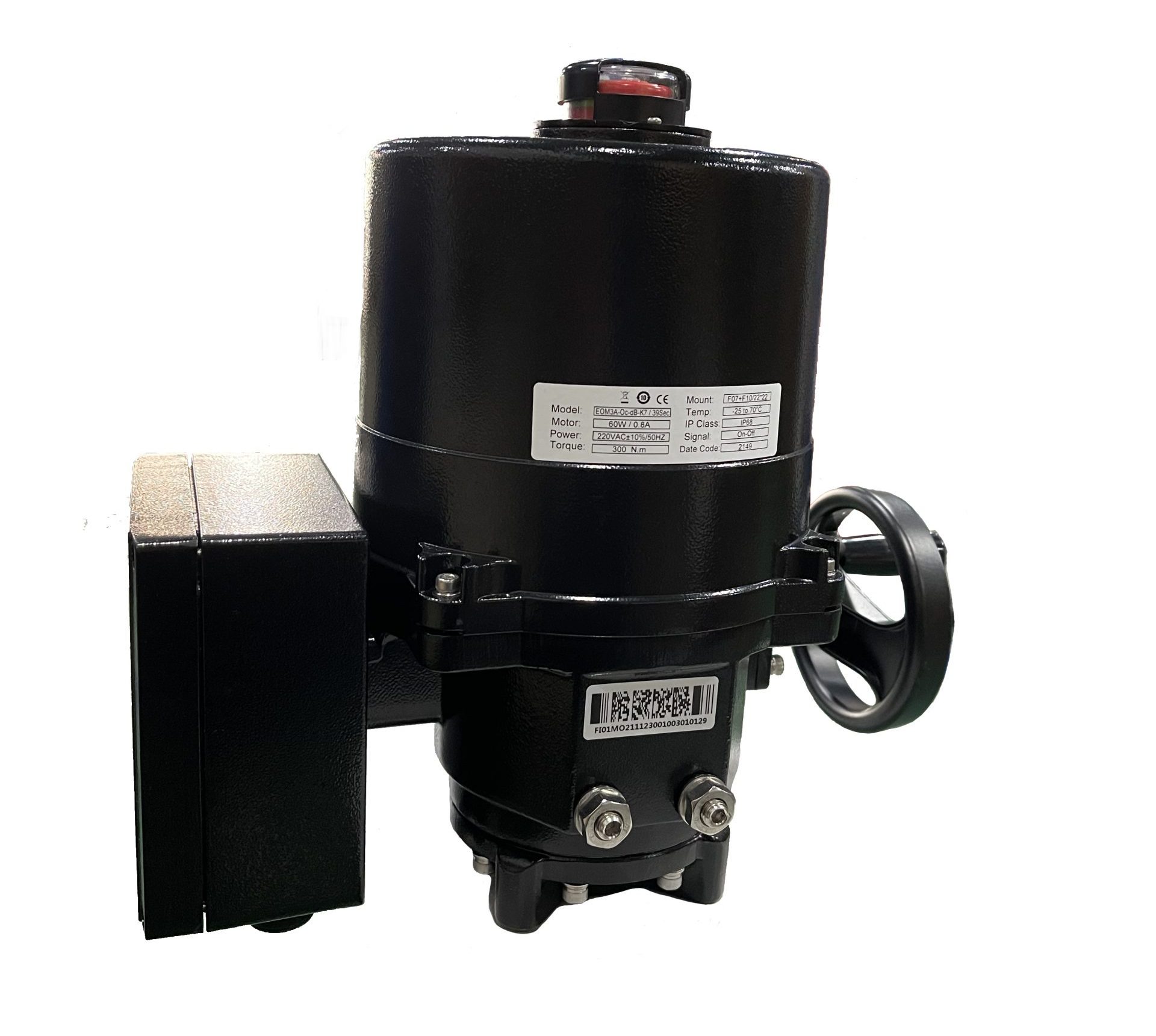

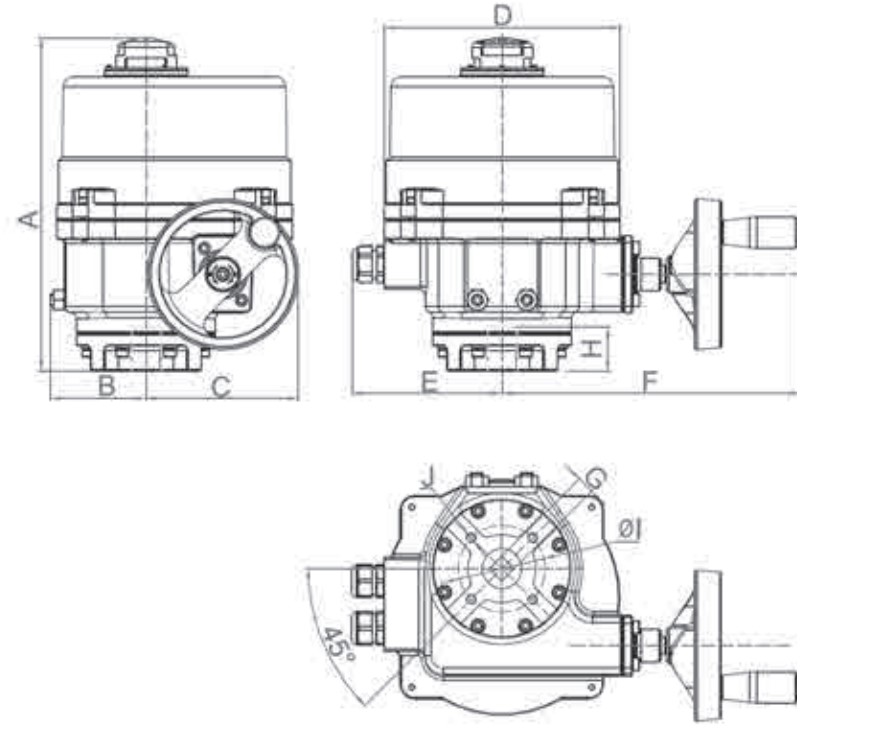

Electrical Actuator
actuator 2

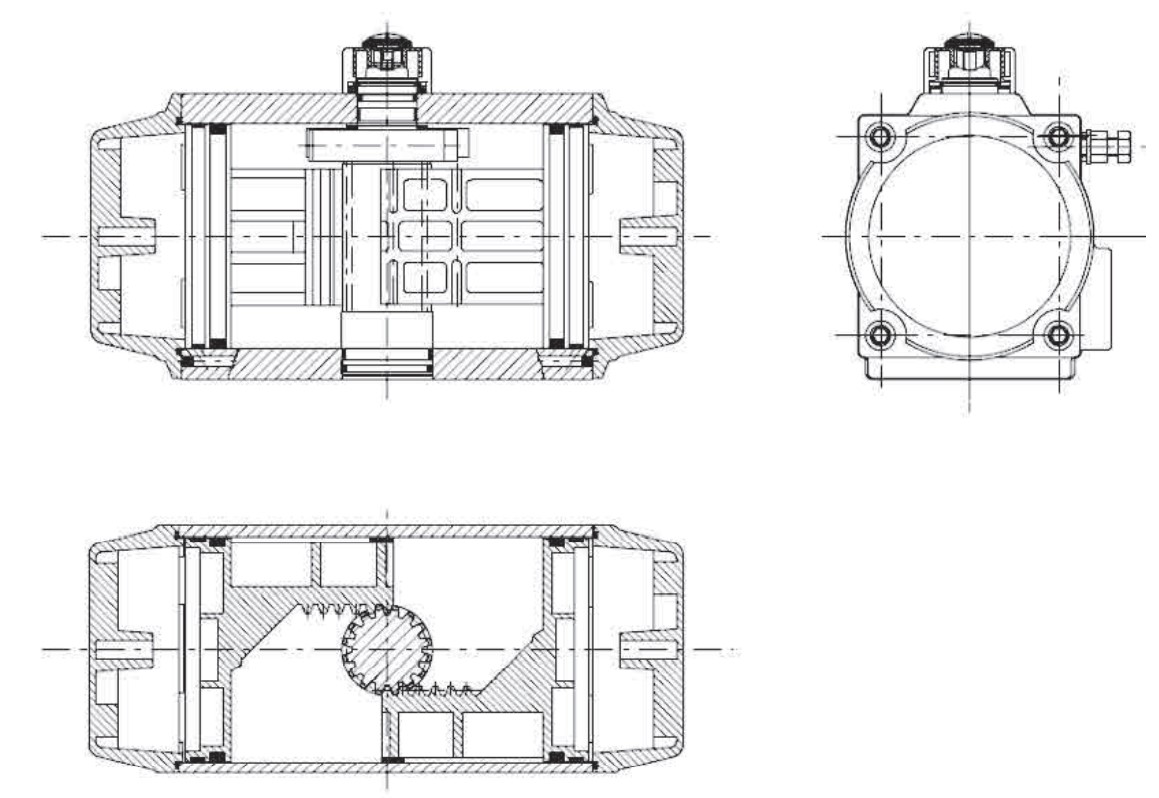

Pneumatic Actuator

Hydraulic Hand Pumps

Xtronica Hydraulic Hand Pump is specifically designed for emergency/normal operating with hydraulic system of Marine and Offshore Oil & Gas industry to endure reliable performance under touch sea environment.

Pure aluminum alloy casted hydraulic oil reservoir tank with life time guarantee of no internal corrosion and light weighted;

Hydraulic oil reservoir tank adopts upper and lower split design to facilitate easy oil drainage and cleaning.

Mounting plates on both sides of the hydraulic tank can be used for mounting nameplates, valve position indicator or other accessories.

The major components use world first class product ie Italian brand CATO for pump head, German brank WIKA for pressure gauge and etc… to ensure the high quality and reliability performance

Double acting hydraulic pump with 4/3 flow divider open center and pressure relief valve.

Stainless steel push bar along with side holding fixture to withstand rough sea condition and corrosion free of life time.

Optional assembled with manifold with hydraulic lock.

Technical Parameters:

  1. Optimal Pressure:120bar; Max. Pressure: 350 bar
  2. Temperature: -30°C to 110°C
  3. Tank materials: Aluminum Alloy
  4. Pump head materials: Cast iron
  5. Relief valve materials: Carbon Steel
  6. Hand Level: Stainless Steel (Ø27)
  7. Oil Tank Capacity: hold hydraulic oil 3~7L
  8. Displacement: 25.0ml (Pull 13.4ml, Push 11.6ml)

Product Type:

Type Note
XTV-HPT Hydraulic Tank
XTV-FHP-A Fixed Hydraulic Hand Pump (without hydraulic lock manifold)
XTV-FHP-B Fixed Hydraulic Hand Pump (with hydraulic lock manifold)
XTV-PHP Portable Hydraulic Hand Pump

Product Picture:

XTV HPT 1 151x300

XTV-HPT

XTV FHP A 119x300

XTV-FHP-A

XTV FHP B 136x300

XTV-FHP-B

XTV PHP 166x300

XTV-PHP
