Electrical Optic Deflection/Torque Monitoring System

Electrical Optic Deflection/Torque Monitoring System

XT-EOD/TM system from XTronica AS is Electrical Optic Deflection/Torque Monitoring System to real time monitor the hull/offshore platform structure deflection and/or torsion to alarm the extreme deflection and/or torsion which cause structure failure.

XT-EOD/TM provides the clear picture of the deflection and/or torsion of the hull to assist master ‘s judgement on board to make a proper decision to achieve safer and more environment friendly operation. XT-EOD/TM system can significantly reduce the risk of operation and reduce the out of service time of the vessel.

EODM 1 1
EODM 2
Features:
  • DNV, CCS type approved architecture for monitoring and control system;
  • Proven performance and high reliability for long application in Marine and Offshore Oil & Gas industry;
  • Adopting Xtronia AS’s latest innovative 4th generation IoT based control technology XTALC and X-SCADA achieving highly automatic and intelligent real time monitoring and alarming;
  • Works in all seasons along both daytime and nighttime without light;
  • Completely contactless design and requires minimum maintenance;
    Suit long-term working with tough marine environment;
  • Modern advanced digital image processing algorithm – high accuracy and high-speed processing data collecting;
  • Interfaces with other on-board system;
  • Real time cloud server.

XT-EOD/TM system is designed to real time measure and monitor the hull deflection and/or torsion during operation via high resolution charged coupled device area scan camera (CCD area scan camera) along with  infrared LED reflection tags installed at deflection/torsion-sensitive parts of the vessel/offshore platform. The build in advanced machine learning and AI algorithms analysis the shift of reflectors on photos to figure out the movement of reflectors and output the deflection/torsion real time at mm accuracy.

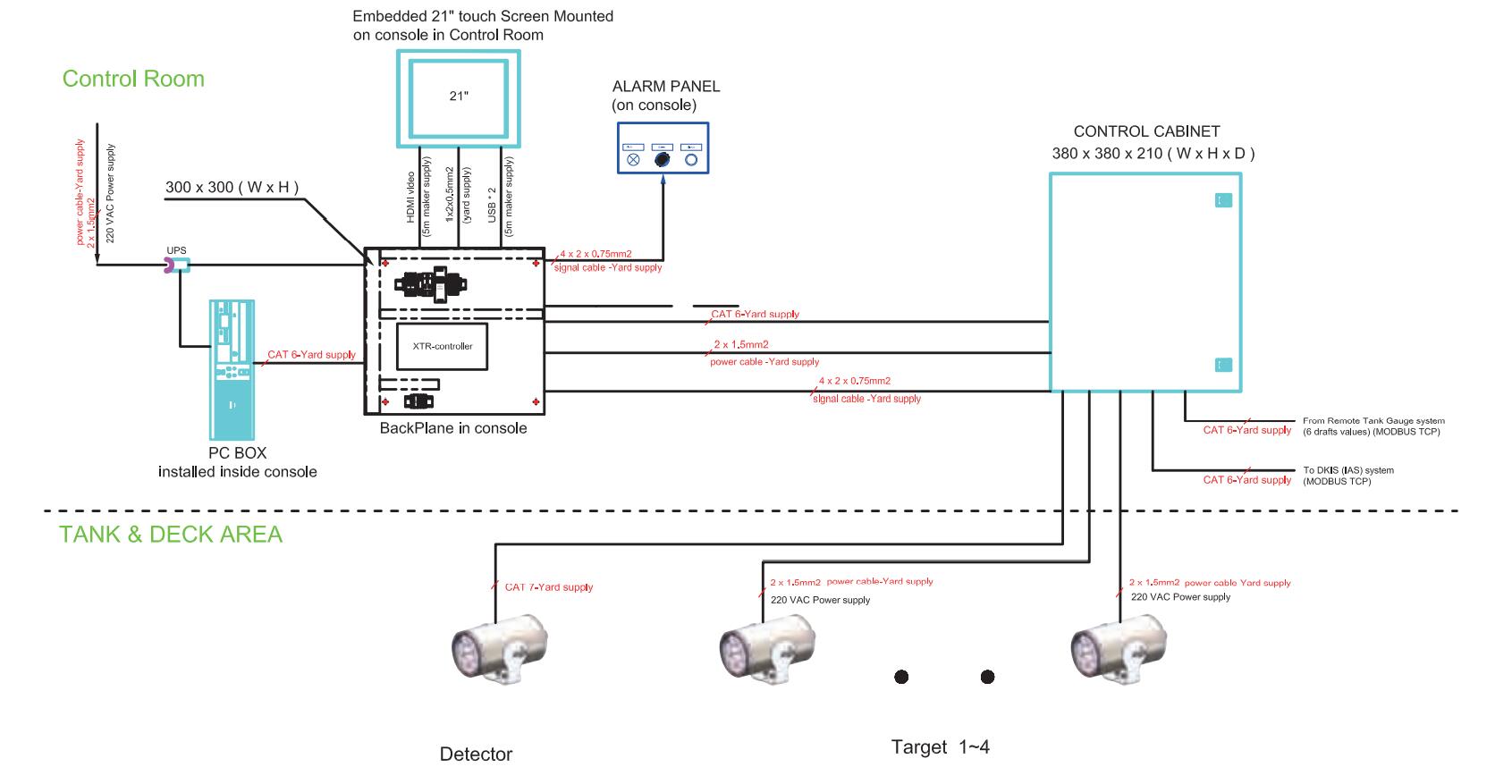

EODM 3
